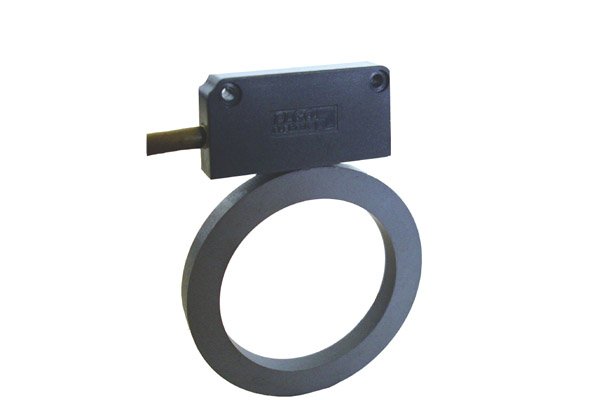

RMIX2 Système de mesure incrémental Mesure des longueurs, positions, angles et vitesses
- Pour la mesure linéaire et angulaire
- Excellent rapport qualité/prix
- Résolution jusqu'à 0,025 mm (avec évaluation sur 4 bords)
- 300.000 révolutions/minute par nombre de paires de pôles
- Très robuste contre la saleté
- Classe de protection élevée IP67
Mechanical data
| Measuring principle | incremental - rotative |
| Repeat accuracy | ± increment |
| System accuracy in µm at 20 °C | ± (25 + 20 x L), L= measuring length in meters |
| Distance sensor / tape | 0.6 mm |
| Sensor housing material | ABS plastic |
| Housing dimensions (L x W x H) | 50 x 12 x 25 m |
| Required magnetic tape | MB20-20-10-1-R resp. pole ring (72, 38 or 19.75 mm) |
| Pole pitch | 2 mm |
| Maximum measuring length | theoretically unlimited |
| Connections | open cable ends |
| Sensor cable | 1.5 m standard length, others on request, drag chain suitable |
| Sensor cable bending radius | 60 mm |
| Weight | approx. 40 g without cable, cable: approx. 60 g/m |
ELEcTRICal DatA
| Power supply voltage | 10 ... 30 VDC or 5 VDC |
| Residual ripple | 10 ... 30 VDC: <10%, 5 VDC: ± 25 mV |
| Current consumption | 10 … 30 VDC: max. 150 mA, 5 VDC: max. 200 mA |
| Output signals | A, A', B, B', Z, Z' |
| Output levels | HTL or TTL |
| Output current per channel | max. 20 mA |
| Resolution (at 4 edge evaluation) | 0.025 mm |
| Index pulse | every 4 mm (periodically) |
| Max. output frequency per channel | 200 kHz |
| Operating Speed | 20 m/s |
| Max. rotation speed | 300,000 revolution/min per number of pole pairs |
Environmental conditions
| Storage temperature | -25 ... +85 °C |
| Operating temperature | -25 ... +70 °C, -25 ... +85 °C on request |
| Humidity | max. 95%, non-condensing |
| Protection class | IP67 |
