EMSC Systèmes de mesure linéaire Mesure magnetique de la longueur avec sorties sinus/cosinus de 1 Vpp
- Signaux de sortie sinus/cosinus proportionnels à la vitesse
- La mesure de 2 mm de mouvement donne une période sinus/cosinus
- Distance de montage par rapport à la bande magnétique jusqu'à 0,8 mm

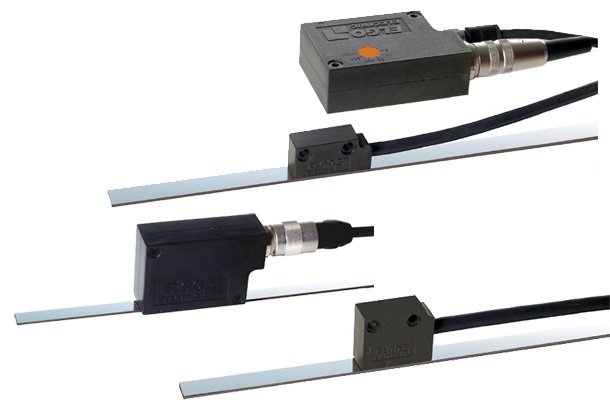

EMSC1 : électronique d'évaluation externe
EMSC2 : électronique d'évaluation intégrée, petite conception
Mechanical data
| Measuring principle | incremental |
| Repeat accuracy | depends on interpolation unit |
| System accuracy in µm at 20 °C | ± (20 + 20 x L), L= measuring length in meters |
| Distance sensor / tape | max. 0.8 mm |
| Sensor housing material | zinc die cast |
| Housing dimensions (L x W x H) | EMSC1 sensor: 30 x 10 x 15 mm, translator box: 72 x 24 x 48 mm EMSC2 sensor: 30 x 12,5 x 25 mm |
| Required magnetic tape | MB20-20-10-1-R |
| Pole pitch | 2 mm |
| Max. measuring length | theoretically unlimited |
| Connections | EMSC: M16 round connector, EMSC2: open cable ends |
| Sensor cable | 1.5 m, others on request, drag chain suitable |
| Sensor cable bending radius | 60 mm |
| Weight | EMSC1 sensor head: approx. 40 g, EMSC1 translator box: approx. 150 g, EMSC2 sensor head: approx. 35 g, each without cable, cable: approx. 60 g per meter |
ELEcTRICal DatA
| Power supply voltage | EMSC1: 10 ... 30 VDC or 5 VDC EMSC2: only 5 VDC, 10 ... 30 VDC on request |
| Residual ripple | 10 ... 30 VDC: <5 % 5 VDC: ± 25 mV |
| Current consumption | 10 … 30 VDC: max. 50 mA 5 VDC: max. 120 mA |
| Output signals | Sin+, Cos+, Sin-, Cos- |
| Output levels | 1 Vss |
| Output current per channel | max. 20 mA |
| Resolution | 2 mm signal period |
| Index pulse | not available |
| Max. output frequency per channel | 10 kHz |
| Max. operating speed | 10 m/s |
Environmental conditions
| Storage temperature | -25 ... +85 °C |
| Operating temperature | -10 ... +70 °C, -25... +85 °C on request |
| Humidity | 95 %, non-condensing |
| Protection class | EMSC1: IP67, translator box: IP40 EMSC2: IP67 |
