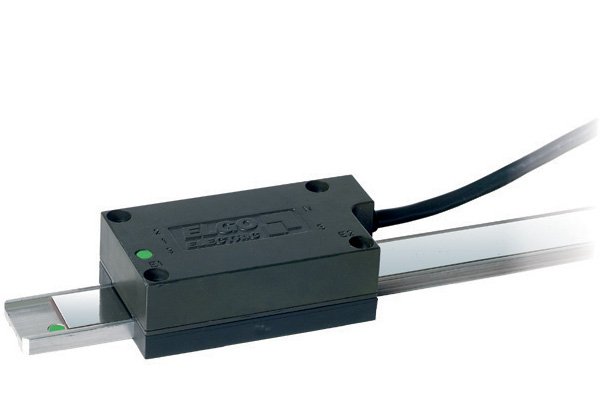

FMAX Système de mesure absolu Unité de mesure linéaire guidée avec chariot et rail de guidage
- Pas de référencement nécessaire
- Mesure directe
- Mesure de longueurs jusqu'à 650 mm
- Haute résolution jusqu'à 0,01 mm
- Précision de répétition +/- 0,01 mm
- Très robuste contre la saleté
- Interfaces : RS232, RS422, SSI
- Montage facile
Mechanical DATA
| Measuring principle | absolute |
| Repeat accuracy | ± 1 increment |
| System accuracy in µm at 20 °C | ± (50 + 20 x L), L= measuring length in meters |
| Distance sensor / tape | guided version: fixed, unguided version: max. 0.5 mm |
| Sensor housing material | zinc die cast |
| Housing dimensions (L x W x H) | 90 x 48 x 23 mm |
| Required magnetic tape | FMAB (guide rail with magnetic tape) |
| Pole pitch | 5 mm |
| Max. measuring length | 650 mm |
| Type of connection | open cable ends |
| Sensor cable | 1.5 m standard length, others on request, drag chain suitable |
| Sensor cable bending radius | min. 60 mm |
| Weight | sensor without cable: approx. 200 g, cable: approx. 60g/m; guide rail + magnetic tape: approx. 390 g/m |
ELEcTRICal DatA
| Power supply voltage | 10 ... 30 VDC ± 10 % |
| Residual ripple | < 10 % |
| Current consumption | max. 150 mA |
| Interfaces | RS232, RS422 or SSI |
| Resolution | 0.01 mm |
| Max. operating speed | 0.5 m/s |
Environmental conditions
| Storage temperature | -25 ... +85 °C |
| Operating temperature | -10 ... +70 °C, -25 ... +85 °C on request |
| Humidity | 95 %, non-condensing |
| Protection class | IP40 (standard), IP65 (option V) |
