DMIX1 | DMIX3 systèmes de mesure incrementals Détection fiable de la position à grande distance de lecture
- Grande distance de lecture capteur - bande magnétique possible (0,1 ... 10,0 mm)
- Résolution standard 1,00 mm
- Insensible à la saleté
- Avec impulsion de référence librement sélectionnable (DMIX3)

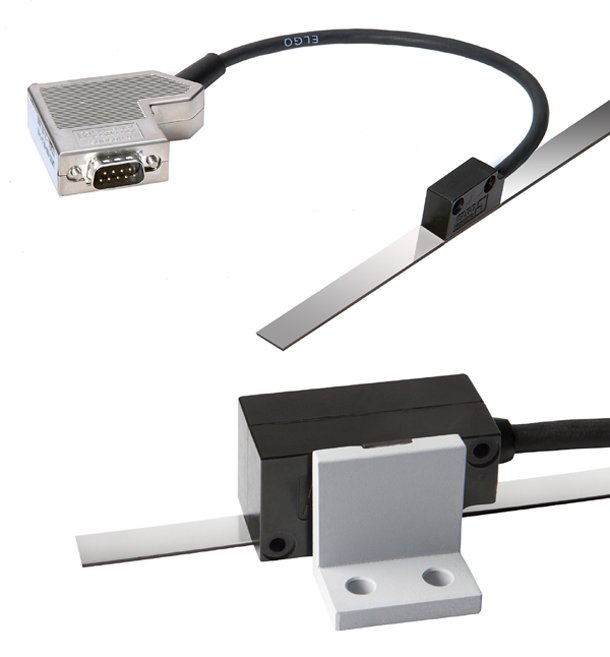

DMIX1 : le capteur et l'électronique d'évaluation sont situés séparément
DMIX3 : capteur et électronique d'évaluation dans un seul boîtier
Mechanical data
Measuring principle | incremental |
Repeat accuracy | ± 1 increment |
System accuracy in µm at 20 °C | ± (1000 + 20 x L), L= measuring length in meters |
Distance sensor / tape | max. 10 mm |
Sensor housing material | zinc die cast |
Housing dimensions (L x W x H) | 30 x 10 x 15 mm |
Required magnetic tape | MB20-160-10-1-R |
Pole pitch | 16 mm |
Max. measuring length | theoretically unlimited |
Connections | 9 pin D-SUB |
Sensor cable | 1.5 m standard length, others on request, drag chain suitable |
Sensor cable bending radius | 60 mm |
Weight | sensor + D-SUB: approx. 40 g, cable: approx. 60 g/m |
ELEcTRICal DatA
Power supply voltage | 10 ... 30 VDC or 5 VDC |
Residual ripple | 10...30 VDC: <10 %, 5 VDC: ± 25 mV |
Current consumption | 10 … 30 VDC: max. 150 mA, 5 VDC: max. 200 mA |
Output signals | A, A', B, B', Z, Z' |
Output levels | HTL or TTL |
Output current per channel | max. 20 mA |
Resolution (at 4 edge evaluation) | 1 mm |
Index pulse | every 16 mm (periodically) |
Max. output frequency per channel | 10 kHz |
Max. operating speed | 20 m/s |
Environmental conditions
Storage temperature | -25 ... +85 °C |
Operating temperature | -10 ... +70 °C, -25... +85 °C on request |
Humidity | 95 %, non-condensing |
Protection class | sensor: IP67, translator unit: IP40 |
Mechanical data
Measuring principle | incremental |
Repeat accuracy | ± 1 increment |
System accuracy in µm at 20 °C | ± (1000 + 20 x L), L= measuring length in meters |
Distance sensor / tape | max. 10 mm |
Sensor housing material | zinc die cast |
Housing dimensions (L x W x H) | 50 x 24 x 26 mm |
Required magnetic tape | MB20-160-10-1-R |
Pole pitch | 16 mm |
Max. measuring length | theoretically unlimited |
Connections | open cable ends |
Sensor cable | 1.5 m standard length, others on request, drag chain suitable |
Sensor cable bending radius | 60 mm |
Weight | approx. 60 g, each without cable, cable: approx. 60 g/m |
ELEcTRICal DatA
Power supply voltage | 10 ... 30 VDC or 5 VDC |
Residual ripple | 10...30 VDC: <10 %, 5 VDC: ± 25 mV |
Current consumption | 10 … 30 VDC: max. 150 mA, 5 VDC: max. 200 mA |
Output signals | A, A', B, B', Z, Z' resp. R, R' |
Output levels | HTL or TTL |
Output current per channel | max. 20 mA |
Resolution (at 4 edge evaluation) | 1 mm |
Index pulse | every 16 mm (periodically), optional as reference pulse |
Max. output frequency per channel | 10 kHz |
Operating speed | 20 m/s |
Environmental conditions
Storage temperature | -25 ... +85 °C |
Operating temperature | -10 ... +70 °C, -25... +85 °C on request |
Humidity | 95 %, non-condensing |
Protection class | IP40, optional IP65 |
