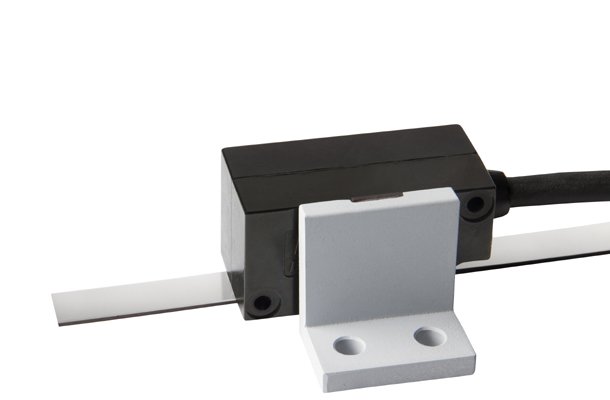

DMIX1 | DMIX3 Incremental Measuring Systems Position and Length Measurement with a high reading distance

  • Large reading distance between sensor and magnetic tape possible (0.1 ... 10.0 mm)
  • Resolution 1.00 mm (default)
  • Insensitive to dirt
  • Reference pulse freely selectable (DMIX3)
  • DMIX1: sensor and electronic evaluation unit are housed separately
  • DMIX3: sensor and electronic evaluation in one housing
Product inquiry

Mechanical data

Measuring principleincremental
Repeat accuracy± 1 increment
System accuracy in µm at 20 °C± (1000 + 20 x L), L= measuring length in meters
Distance sensor / tapemax. 10 mm
Sensor housing materialzinc die cast
Housing dimensions (L x W x H)30 x 10 x 15 mm
Required magnetic tapeMB20-160-10-1-R
Pole pitch16 mm
 Max. measuring length theoretically unlimited
Connections9 pin D-SUB
Sensor cable1.5 m standard length, others on request, drag chain suitable
Sensor cable bending radius60 mm
Weightsensor + D-SUB: approx. 40 g, cable: approx. 60 g/m

ELEcTRICal DatA

Power supply voltage10 ... 30 VDC or 5 VDC
Residual ripple10...30 VDC: <10 %, 5 VDC: ± 25 mV
Current consumption10 … 30 VDC: max. 150 mA, 5 VDC: max. 200 mA
Output signalsA, A', B, B', Z, Z'
Output levelsHTL or TTL
Output current per channelmax. 20 mA
Resolution (at 4 edge evaluation)1 mm
Index pulse every 16 mm (periodically)
Max. output frequency per channel10 kHz
Max. operating speed20 m/s

Environmental conditions

Storage temperature-25 ... +85 °C
Operating temperature-10 ... +70 °C, -25... +85 °C on request
Humidity95 %, non-condensing
Protection classsensor: IP67, translator unit: IP40

Mechanical data

Measuring principleincremental
Repeat accuracy± 1 increment
System accuracy in µm at 20 °C± (1000 + 20 x L), L= measuring length in meters
Distance sensor / tapemax. 10 mm
Sensor housing materialzinc die cast
Housing dimensions (L x W x H)50 x 24 x 26 mm
Required magnetic tapeMB20-160-10-1-R
Pole pitch16 mm
 Max. measuring length theoretically unlimited
Connectionsopen cable ends
Sensor cable1.5 m standard length, others on request, drag chain suitable
Sensor cable bending radius60 mm
Weightapprox. 60 g, each without cable, cable: approx. 60 g/m

ELEcTRICal DatA

Power supply voltage10 ... 30 VDC or 5 VDC
Residual ripple10...30 VDC: <10 %, 5 VDC: ± 25 mV
Current consumption10 … 30 VDC: max. 150 mA, 5 VDC: max. 200 mA
Output signalsA, A', B, B', Z, Z' resp. R, R'
Output levelsHTL or TTL
Output current per channelmax. 20 mA
Resolution (at 4 edge evaluation)1 mm
Index pulse every 16 mm (periodically), optional as reference pulse
Max. output frequency per channel10 kHz
Operating speed20 m/s

Environmental conditions

Storage temperature-25 ... +85 °C
Operating temperature-10 ... +70 °C, -25... +85 °C on request
Humidity95 %, non-condensing
Protection classIP40, optional IP65
