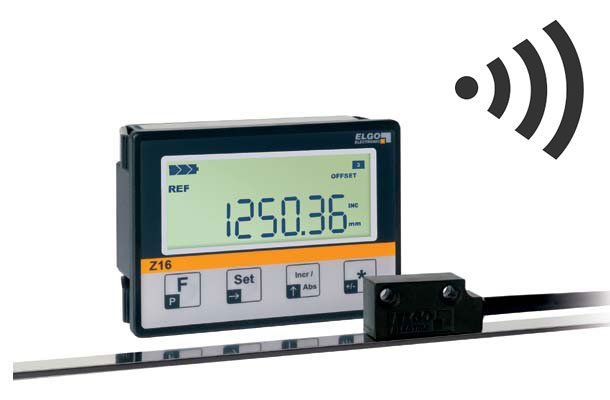

IZ16E-600 Misurazione e sistema di visualizzazione Con la trasmissione wireless via radio 868 MHz del valore effettivo
- modulo radio integrato 868 MHz
- display LCD grande con 7 posizioni, altezza delle cifre 14 mm
- risoluzione fino a 0,01 mm
- simbolo "°" per visualizzare l'angolo
- rappresentazione in frazione o numeri decimali di pollici
- programmabile ampliamente o individualmente
- custodia portabatteria (interno o esterno)
- funzione Auto-Power-Off con impostazione della durata del funzionamento regolabile, funzione Auto-Power-On tramite movimento del sensore oppure digitazione dei tasti
- disponibile anche come un visualizzatore slave senza sensore (tipo IZ16E-620), può essere combinato con IZ16E-600 o IZBOX-600
MECHANICAL DATA
| Housing | norm panel housing |
| Housing material | plastic, black |
| Housing dimensions (W x H) | 96 x 72 mm |
| Panel cut out (W x H) | 93 x 67 mm |
| Keyboard | foil with short stroke keys |
| Installation depth (complete) | min. 30 mm, depending on version |
ELECTRICAL DATA
| Display | 7 digit LCD (digit height 14 mm), with sign, battery status and measurement units |
| Perspective | 12 o'clock |
| Measurement units | mm / inch / m / ° |
| Accuracy | ± 1 digit |
| Power supply voltage | battery (1.5 V resp. 3 V), integrated or external. 24 V on request |
| Current consumption | < 1 mA at 1.5 V (normal operation without radio transmission), approx. 5 mA at permanent radio transmission |
| Battery Service life | 1 ... 3 years (depending on battery type) |
| Interface | RF 868 MHz |
| Connections | standard: fixed cable outlet, optional: round connector |
| Data memory | Flash |
ENVIRONMENTAL CONDITIONS
| Operating temperature | 0 ... +50 °C |
| Storage temperature | -10 ... +60 °C |
| Humidity | max. 80 %, non-condensing |
| Protection class (front) | IP54 |
| Protection class (rear) | IP40 |
868 MHz SpeCifiCaTIon
| Range | up to 200 m (by intervisibility) |
| HF-data range | 38 kbps |
| Power output | type 2 dBm e.i.r.p. (10 dBm at 50?) |
| Input sensitivity | up to - 102 dBm (-110 dBm at 50?) |
| Frequency range | 863 - 868,6 MHz |
| Channel spacing | 50 kHz |
| Modulation method | 2-FSK, MSK |
| Antenna | integrated ceramic antenna |
| Topology | point to point |
| Transmission | bi-directional, half-duplex, with receipt, with CRC-checksum calculation, 5-time repeating of non-acknowledged radio telegrams |
| Addressing | 2 byte address space, max. 64000 different addresses |
| Conformity (Europe) | EN 300220-1, EN 301489-1/-3, EN 60950-1, EN 50371 |
MAGNETIC SENSOR
| Type designation | MS-250 |
| Dimensions (L x W x H) | 30 x 10 x 15 mm |
| Measuring principle | magnetic, incremental |
| Required magnetic tape | MB-20-25-10-1-R |
| Magnetic tape pole pitch | 2.5 mm |
| Distance sensor/ tape | max. 0.8 mm |
| Resolution | 0.1 ... 0.01 mm |
| Repeat accuracy | ± 2 increments |
| Operation speed | max. 4 m/s |
| Housing material | zinc die cast |
| Protection class | IP67 |
| Connections | fixed connection with indicator or optionally with round connector |
| Sensor cable | drag-chain suitable, 6-wire, twisted pairs and double-shielded |
| Sensor cable length | 0.1 ... 2.0 m |
| Sensor cable bending radius | min. 60 mm |
| Weight | approx. 30 g |
| Humidity | max. 95 %, non-condensing |
| Influence of external magnetic fields | external magnetic fields > 1 mT, which directly impinge upon the sensor, can affect the system accuracy. |
