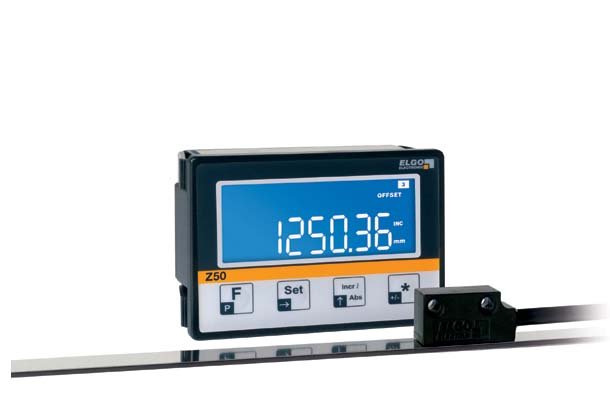

Z50 1-Axis Position Indicator / Counter Versatile 1-axis Position Indicator with serial interface via USB

  • Connection to incremental and absolute measuring systems
  • Actual value memory
  • 7-digit LCD-display, digit height 14 mm
  • 2 digital inputs
  • Serial interface via USB
Product inquiry

mechanical data

Housingnorm panel housing
Housing materialABS plastic, black
Housing dimensions (W x H)96 x 72 x 31 mm (without seal), 98 x 74 x 31 mm (with seal)
Panel cut out (W x H)93 x 67 mm
Keyboardmembrane keypad
Installation depth27 mm (with connectors)

elektical data

Display7 digit LCD (digit height: 14 mm) with sign and measurement units
Perspective 12 o'clock
Measurement unitsmm, m, Inch, RPM or °
Accuracy± 1 digit
Power supply voltage24 VDC ± 20 %
Current consumption50 mA (without measuring system)
Encor supply24 VDC or 5 VDC (order designation)
Load by encor/ measuring systemmax. 300 mA
Signal inputsHTL, TTL or RS422 (order designation)
Signal channelsA,B bzw. A, A', B, B', Z, Z' or RxD+, RxD-, TxD+, TxD-
Maximum input frequency100 kHz
External inputs2 control inputs (24 V, PNP)
InterfacesUSB with COM port emulation on PC or PLC
Connectionspluggable screw terminals and mini USB socket
Power down memoryFRAM
Optional accessoriesexternal power pack NG24.0

environmental conditions

Operating temperature0 ... +50 °C-20 ... +80 °C
Storage temperature-20 ... +80 °C
Humidity max. 80 %, non-condensing
Protection class (front)IP54 installed state (with seal), IP43 (installed state, without seal)
Protection class (rear)IP40
