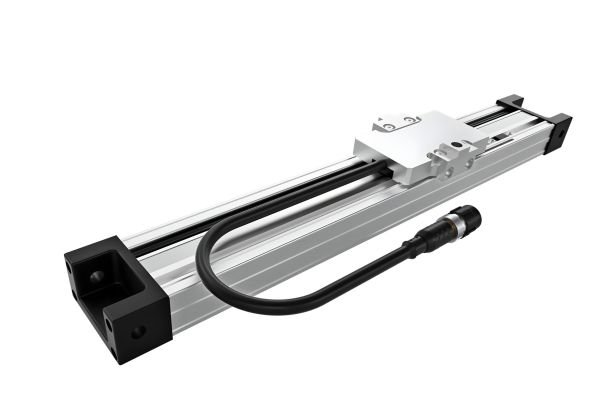

GSI6 Magnetic Linear Encoder with Precision Guiding Unit
The GSI6 is a guided magnetic linear encoder designed for high‑precision positioning tasks. The precision guiding unit with a play‑free carriage ensures absolutely straight, stable and low‑vibration movement. This makes the magnetic measuring system ideal for applications requiring maximum repeatability and mechanical rigidity.
As a robust and low‑maintenance alternative to glass scales, the system has been specifically developed for use in bending machines and other demanding mechanical engineering applications.
Product inquiryADVANTAGES at a glance
- For high‑precision positioning (magnetic tape with 2 mm pole pitch)
- Robust precision guiding unit ensures consistently accurate motion sequences
- Freely selectable reference point
- Adapter bracket for flexible machine installation
Typical Applications
Ideally suited as an robust alternative to glass scales in metal‑forming technology, such as in press brakes.
Mechanical DATA
| Measuring principle | incremental |
| Repeat accuracy | ±1 increment (order‑dependent), without taking mechanical effects into account |
| System accuracy in µm at 20 °C | ±(20 + 20 x L), L= measuring length in meters, |
| Distance sensor / tape | specified by the guiding unit |
| Sensor housing material | sensor: potting compound, guiding unit: aluminium |
| Housing dimensions (L x W x H) | guide carriage: 80 x 50 x 12 mm (without cable and coupling adaptor), guide rail: (133 + measuring length) x 52 x 26.5 mm |
| Required magnetic tape | MB20-20-10-1-R-EPS10 |
| Pole pitch | 2 mm |
| Max. measuring length | 1000 mm |
| Connections | M12 circular connector (standard) |
| Sensor cable | 0.5 m standard length, others on request, drag-chain suitable |
| Sensor cable bending radius | 60 mm |
| Weight | approx. 720 g at 330 mm measuring length |
ELEcTRICal DatA
| Power supply voltage | 10 ... 30 VDC or 5 VDC, stabilized (±25 mV) |
| Residual ripple | 10 ... 30 VDC: < 10 %, 5 VDC: ±25 mV |
| Current consumption | 10 ... 30 VDC: max. 50 mA, 5 VDC: max. 100 mA (with unloaded outputs) |
| Output signals | A, A', B, B', R, R', adjustable reference pulse |
| Output levels | HTL or TTL |
| Output current per channel | max. 20 mA |
| Resolution (at 4 edge evaluation) | up to 0.001 mm |
| Max. output frequency per channel | depending on selected resolution |
| Max. operating speed | 4 m/s, depending on selected resolution |
Environmental conditions
| Storage temperature | -25 ... +85 °C |
| Operating temperature | -10 ... +70 °C, -25 ... +85 °C on request |
| Humidity | 95 %, non-condensing |
| Protection class | sensor head: IP67, mechanical parts: IP54 |
